KVquattro.com

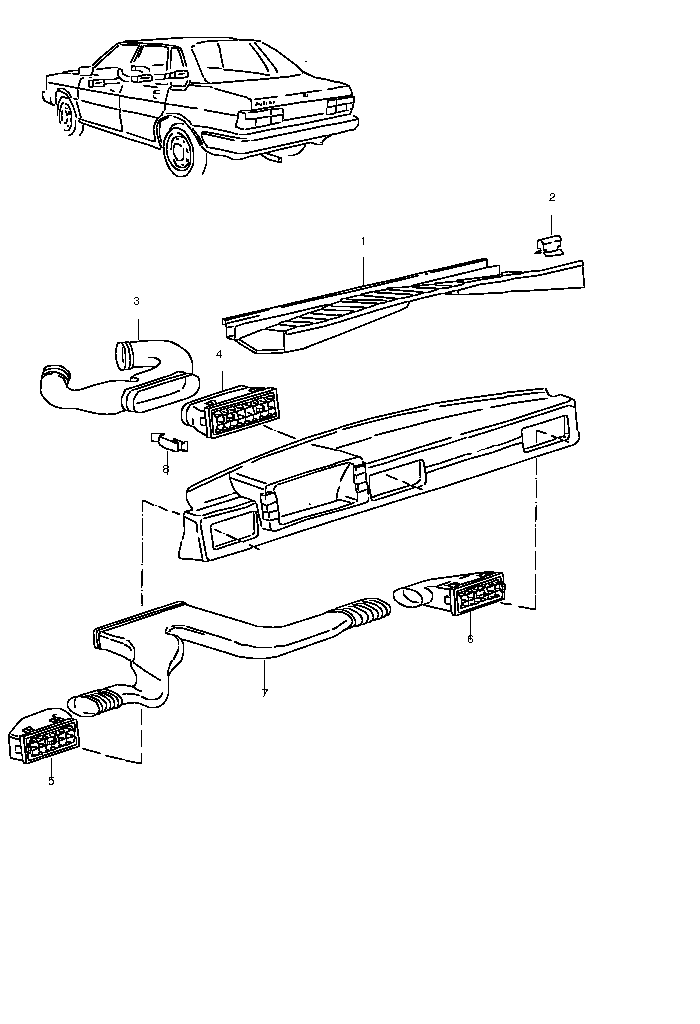

Audi Coupe quattro, 1985 AIR DUCT

1 811819099B water deflector
(1) 811819099A water deflector / lhd / air condit.
(1) --------- no longer available / rhd / air condit.
2 191819145A clips
3 811819457A air hose
4 811819685E air vent / center
811819685E 01C satin black
5 811819703E air vent / left
811819703E 01C satin black
6 811819704E air vent / right
811819704E 01C satin black
7 811819701C air hose / lhd
(7) 812819701B air hose / rhd
8 811819747A spring clamp
- N 90437601 pop-rivet / A3,2X8 air condit.
