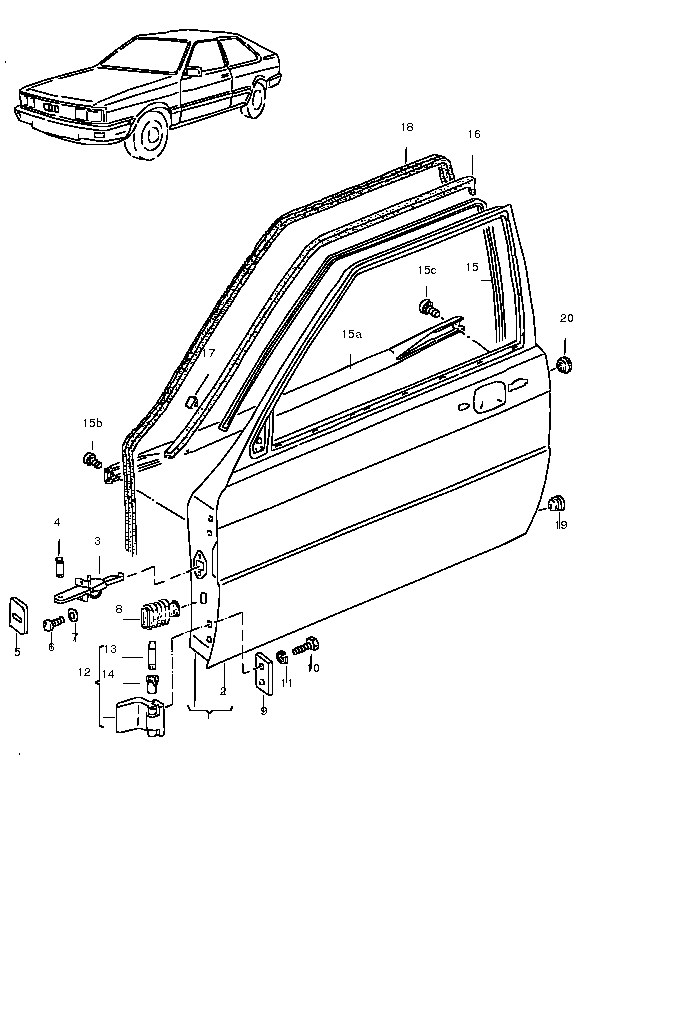

1 |
855831051E |
door / left |
(1) |
855831052E |
door / right |
2 |
855831105 |
door outer panel / left |
(2) |
855831106 |
door outer panel / right |
3 |
443839249B |
check rod - door |
4 |
433837243 |
knurled rivet |
5 |
867837267 |
covering |
6 |
N 0147506 |
allen key head
bolt / M6X10 |
7 |
311837943 |
concave spring washer / 6,4X18 |
8 |
4A0959845C |
bellows / 52X30/47X27/ / 50X30 |
9 |
433831331 |
plate |
10 |
N 01023820 |
hexagonal head bolt / M8X15 |
11 |
N 0120387 |
spring ring / 8 |
12 |
433833401A |
door hinge / lower |
(12) |
433831401A |
door hinge / upper |
13 |
433831421A |
pin - hinge |
14 |
433831441 |
bush |
15 |
855837437 |
protective edging / left |
|
855837437 01Z |
dark brown (brown) |
(15) |
855837438 |
protective edging / right |
|
855837438 01Z |
dark brown (brown) |
15A |
--------- |
no longer available |
15B |
N 0141395 |
fillister hd. bolt / M6X12 also use: / N 012 127 2 |
- |
N 0121272 |
shake-proof washer / A6,4 |
15C |
N 0441473 |
fillister hd. bolt / M8X12 also use: / N 012 132 2 |
- |
N 0121322 |
shake-proof washer / A8,4 |
16 |
--------- |
no longer available |
17 |
831833719 |
clip |
18 |
857831721 |
door seal / inner |
19 |
N 0200251 |
plug / A12X1 |
20 |
111971911A |
grommet / 16,5 |
- |
N 0200291 |
plug / B7X0,8X14 |
- |
N 0200223 |
plug / A8X1 |
- |
443831469A |
grommet / 50X30,5 door lockdoor inner operating leverdoor handle, outer |
