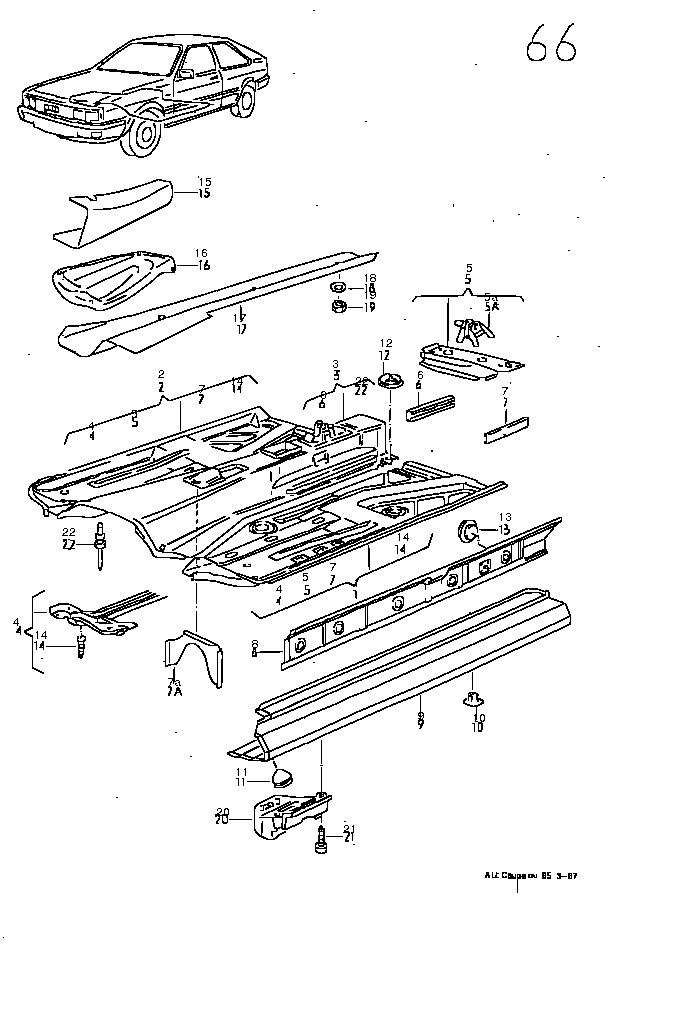

Audi Coupe quattro, 1985 FLOOR ASSEMBLY

1 323803061 floor plate / left
2 323803062 floor plate / right
3 857803067A tunnel
4 321803103E longitudinal member / left
(4) 811803104 longitudinal member / right
5 857803173A seat support / left
(5) 321803172 seat support / right
5A 443803241 bracket for seat / left
(5A) 443803242 bracket for seat / right
6 1H0803257A channel / left inner
(6) 1H0803258A channel / right inner
7 443803253 channel / outer
7A 857803443A cover panel
8 811803751A side member / left inner
(8) 811803752A side member / right inner
9 811803761A side member / left outer
(9) --------- no longer available / right outer
10 111801177 rubber valve / 10,2 / outer
11 N 0200271 plug / A15X1
12 893803583A cover / 41,3
13 803803583B plug / 40
14 N 90175701 weld pin 'order unit 100' / 5X12
15 --------- no longer available
- 857804162 heat insulating (self-adhesive) / 50X2700MM / OD.2 IN X 3YD sub-frame
16 857804166A heat insulatingcatalyst
17 857804167 heat insulation for floor
18 N 01166615 washer / 6,4X18X1,6
19 N 0386021 nut,thread cutting / 4X5,75
20 811803853 socket - jack
- D 001500 2k-adhesive
21 N 0139671 oval head panel screw / B4,2X19-C
22 431805121A t-bolt
- 811803583A plugfloor assembly
