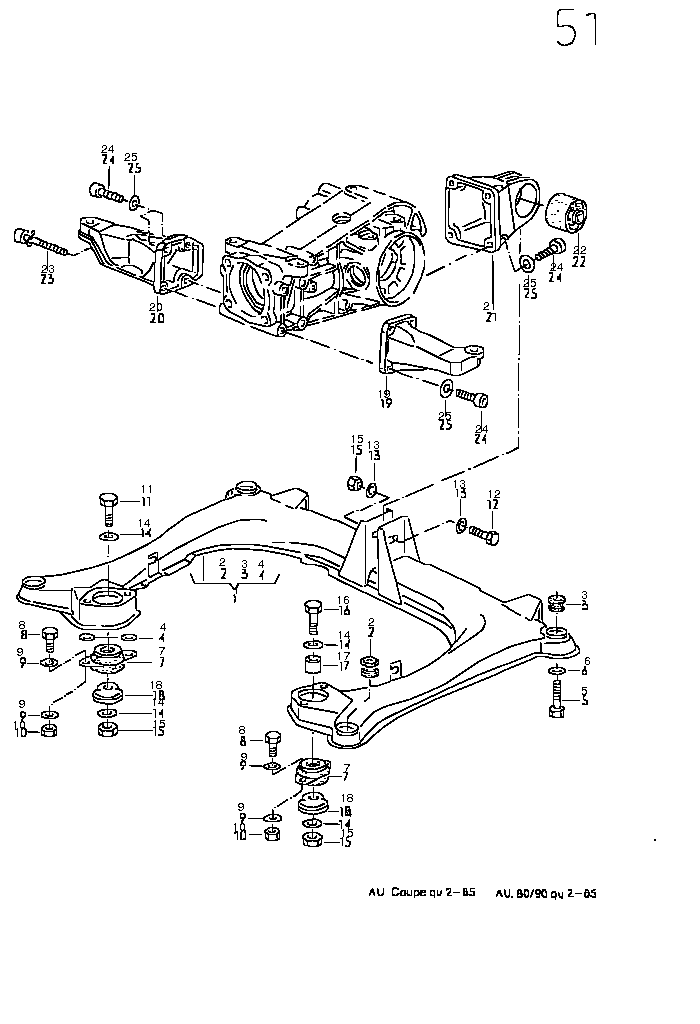

Audi Coupe quattro, 1985 SUBFRAME

1 895505235F subframe
2 857199419C rubber mounting
3 857199415B rubber mounting
4 857525293 washer
5 N 90556902 hexagonal head bolt / M10X75
6 823199347 washer
7 857599431 bonded rubber mounting
8 N 01024016 hexagonal head bolt / M8X20
9 N 01152520 washer / A8,4X16X1,6
10 N 0221464 hexagon nut, self-locking / VM8
11 N 01047211 hexagonal head bolt / M10X85 F >> 85-F-157 222
(11) N 0104814 hexagonal head bolt / M10X95 F 85-F-157 223>>
12 N 0104569 hexagonal head bolt / M10X90 F >> 85-F-157 222
(12) N 01047211 hexagonal head bolt / M10X85 F 85-F-157 223>>
13 N 01152711 washer / A10,5X21X2
14 N 0115461 washer / A11X24X3
15 N 10286102 shouldered hex. nut, self-locking / M10
16 N 0105002 hexagonal head bolt / M10X110
17 --------- no longer available
18 431399291 limit stopF >> 85-F-157 222
(18) 431399291A limit stopF 85-F-157 223>>
(19) 893599131 support for transmission / left
(20) 893599132 support for transmission / right
21 --------- no longer available
22 171199214D bonded rubber mounting / 64,4MM
23 N 10102501 allen key head bolt (combi) / M10X108 F 85-F-157 223>>
24 N 0147236 allen key head bolt / M10X30 F 85-F-157 223>>
25 N 0115608 washer / 10,5X18X1,6
