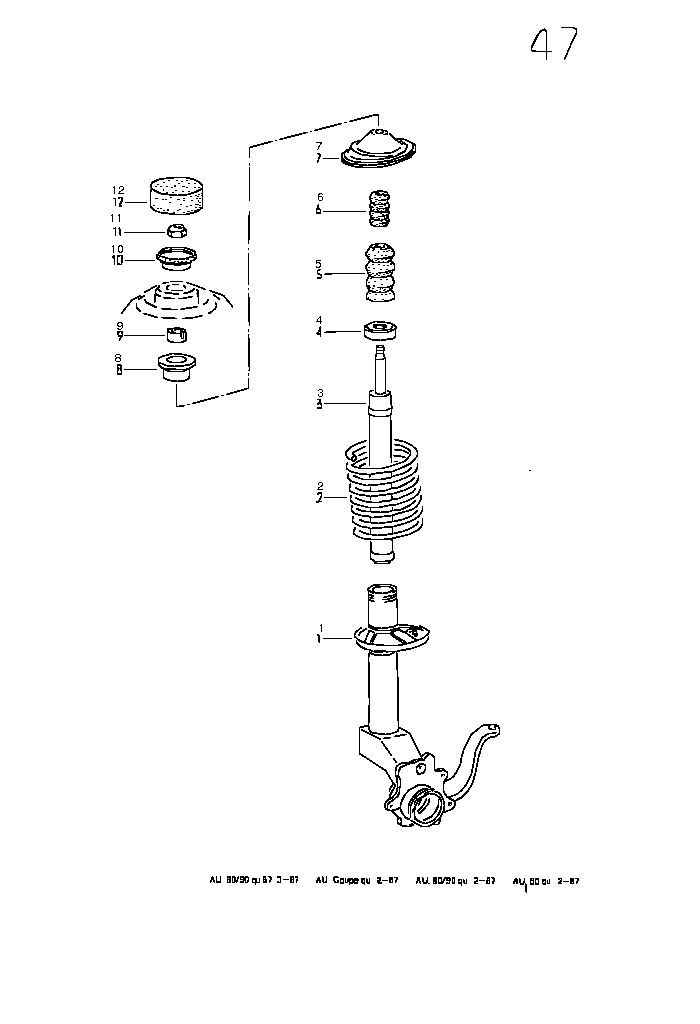

Audi Coupe quattro, 1985 SUSPENSION

1 893512023 wheel bearing housing with suspension strut tube / left
(1) 893512017 wheel bearing housing with suspension strut tube / left for models with anti-lock brake system -abs-
(1) 893512024 wheel bearing housing with suspension strut tube / right
(1) 893512018 wheel bearing housing with suspension strut tube / right for models with anti-lock brake system -abs-
(2) 853511115C coil spring1 paint mark / green 1 paint mark / yellow for models with drive system protective plates
3 893513031G shock absorber
(3) 853513031A shock absorberfor models with drive system protective plates
4 431412047B cap
5 857412135 bellows
6 857412131A stop buffer
7 857412111B spring disc / upper
8 857412323B mounting cup
9 811412365 threaded bush / M14X1,5
10 853512319 spring disc
11 N 0221501 hexagon nut, self-locking / M14X1,5
12 853512181 gasket
