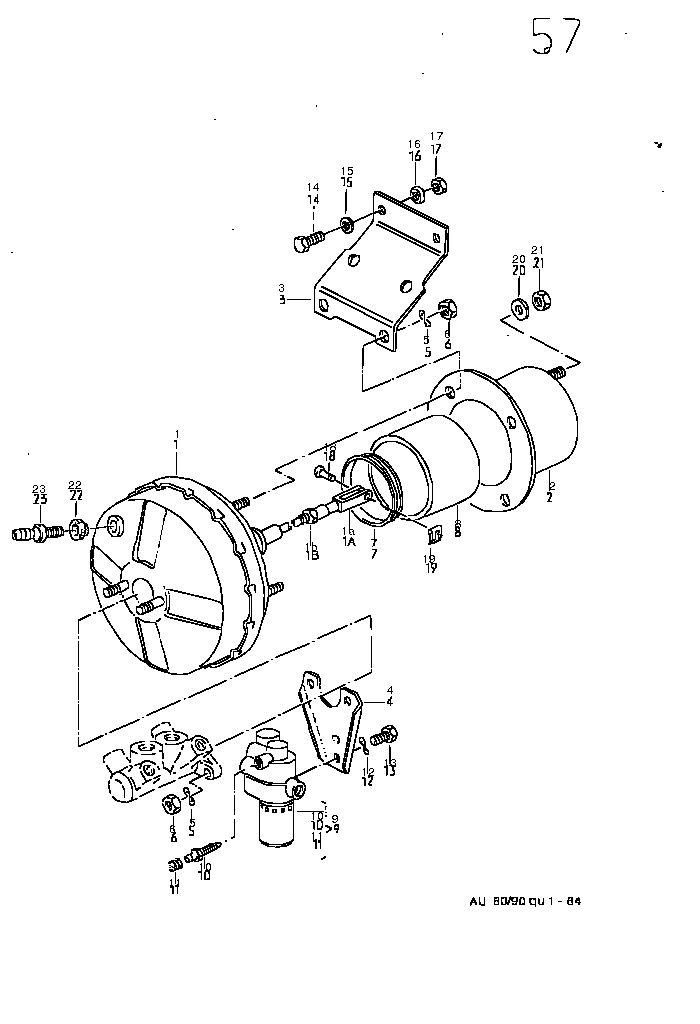

| 1 |
893612107A |
Brake Servo / 9"X193 also use: / 893 721 213 / N 011 162 9 / 443 721 371 A |
| 1A |
893721213 |
clevis / G10X32X97 |
| (1A) |
811721213 |
clevis / G10X32X97 / rhd |
| 1B |
N 0111629 |
hexagonal nut / M12X1,5 |
| (1B) |
N 0111345 |
hexagonal nut / M10 / rhd |
| 2 |
811611945B |
bracket for
brake servo / lhd |
| (2) |
8A0611945 |
bracket for
brake servo / rhd |
| 3 |
857612209 |
support |
| 4 |
853612405 |
bracket brake press. regulator |
| 5 |
N 01152520 |
washer / A8,4X16X1,6 |
| 6 |
N 0110088 |
hexagonal nut / M8 |
| 7 |
N 90125101 |
round seal / 70X3N |
| 8 |
321611969 |
seal / lhd |
| (8) |
823611969A |
seal / rhd |
| 9 |
803612303 |
brake pressure regulator
(pressure-sensitive) |
| 10 |
803612351 |
bleeder valve |
| 11 |
211611483 |
dust cap |
| 12 |
N 01152520 |
washer / A8,4X16X1,6 |
| 13 |
N 0102376 |
hexagonal head bolt / M8X12 |
| 14 |
N 01021527 |
hexagonal head bolt / M6X15 |
| 15 |
N 01152423 |
washer / A6,4X12,5X1,6 |
| 16 |
N 01166615 |
washer / 6,4X18X1,6 |
| 17 |
N 01100624 |
hexagonal nut / M6 |
| 18 |
N 90051201 |
pin / 10D11X20,6X7,1 |
| (18) |
443721371A |
pin / 10D11X22,6X / 18,1 |
| 19 |
N 90254701 |
lock washer / 8X0,5 |
| 20 |
N 01152520 |
washer / A8,4X16X1,6 |
| 21 |
N 0221464 |
hexagon nut, self-locking / VM8 |
| (21) |
N 90908301 |
shouldered hex. nut,
self-locking / M8 / rhd |
| 22 |
861612175 |
gasket |
| 23 |
191611933E |
non-return valvealso use: / 056 129 777 |
| - |
056129777 |
cap / 4MM |
| - |
N 0110088 |
hexagonal nut / M8 |
|
